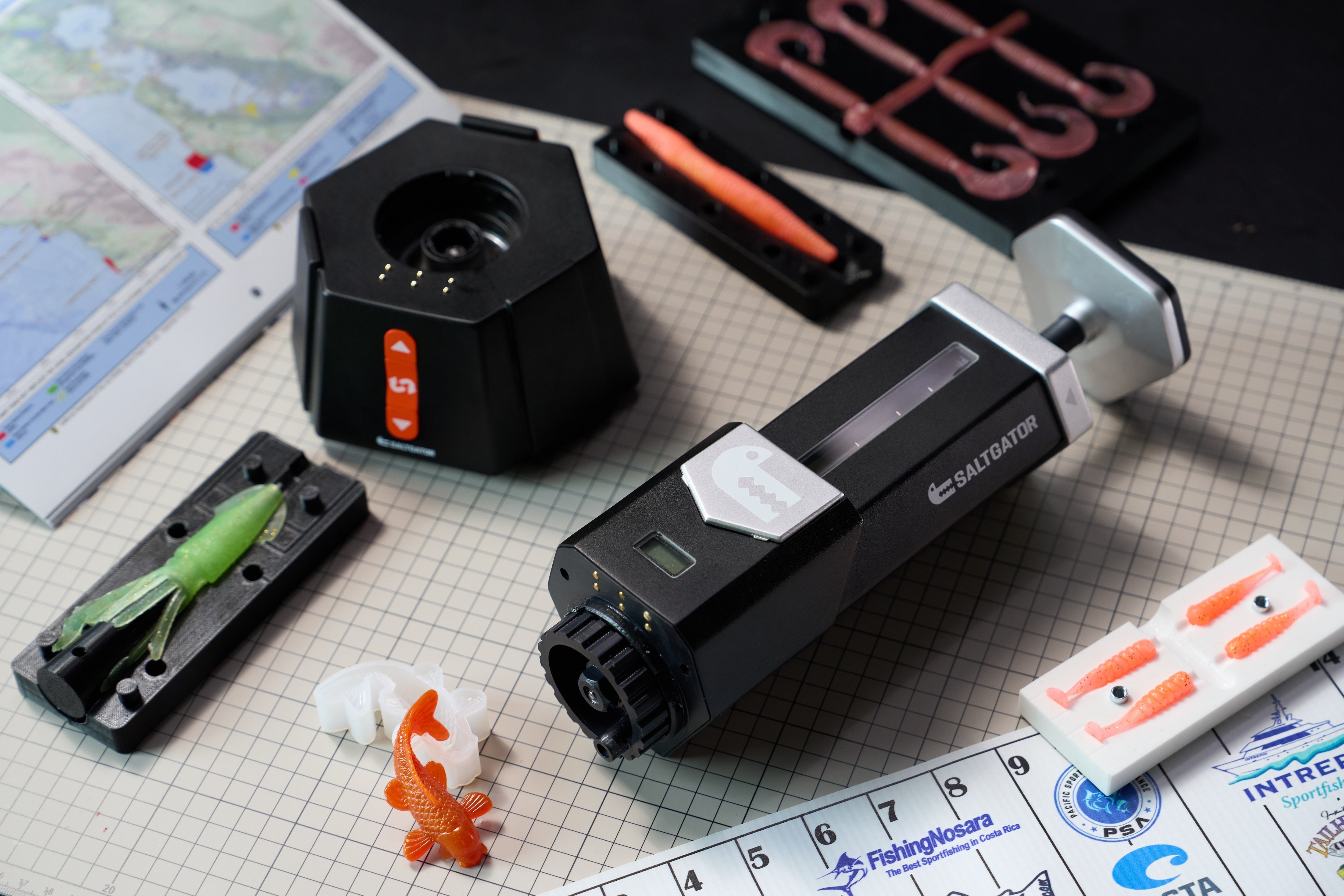

1. Inadequate Heat Resistance 🔥
Symptoms:
- Mold deforms, softens, or even melts
- Cavity edges collapse or severe material overflow
Causes:
- Common printing materials (e.g., PLA, PETG) have low heat resistance, requiring special design adjustments
Recommended Materials:
- Best choice: High-temperature resins (e.g., Formlabs High Temp Resin), PA12 (Nylon), PEEK, PEI (Ultem), or other industrial-grade materials
- If using PLA or PETG: Increase wall thickness. Generally, the top should be 3–5 mm thick with 5–7 layers, and the base should be 3 mm to ensure clamping force without deformation when using woodworking clamps or screws
2. Insufficient Strength & Sealing
Symptoms:
- Material leakage or cracks at mold edges
- Mold breaks easily during clamping
- Mold is damaged or leaves residue after demolding
Causes:
- Weak points between 3D-printed layers
- Injection pressure exceeds the load capacity of the printed material
Solutions:
- Increase mold wall thickness (recommended ≥3 mm)
- Use screw-locking design instead of manual clamps
3. Rough Surface / Poor Demolding
Symptoms:
- Finished parts show visible print lines
- Severe adhesion between mold and product, difficult to demold
- Stringing, tearing, or surface defects
Causes:
- FDM-printed molds have rough surface layers
- Some mold materials are inherently adhesive (avoid ABS, PC, PVC)
Improvements:
- Post-process molds with sanding, apply anti-stick coatings, or use mold release agents
- Recommended materials: PETG, PA (less adhesive to soft-gel materials)
- For release agents:
- Oil-based: silicone oil
- Dry type: Teflon dry spray
- Use SLA or DLP resin printing for smoother mold surfaces
4. Poor Venting Design
Symptoms:
- Air bubbles or burn marks in the product
- Incomplete filling or short shots
- Air trapped inside the mold cavity
Causes:
- 3D-printed molds often lack venting channels in the initial design
- Small gaps or improper geometry cause trapped air
- Insufficient holding pressure
Recommendations:
- Design venting grooves along the parting line (e.g., 0.2 mm deep, 5 mm wide)
- Add removable venting pins or open channels
- Increase holding pressure and duration
- Shorten injection paths and avoid dead corners
Common Mold Issues & Solutions
| Issue | Symptoms | Causes | Solutions |
|---|---|---|---|
| Inadequate Heat Resistance 🔥 | - Mold deforms, softens, or melts - Cavity edges collapse or heavy overflow | - PLA, PETG have low heat resistance | - Use high-temp resin, PA12, PEEK, or PEI (Ultem) - If using PLA/PETG: increase wall thickness (Top: 3–5 mm, 5–7 layers; Base: 3 mm) to prevent deformation under clamping |
| Insufficient Strength & Sealing | - Material leakage or cracks at edges - Mold breaks during clamping - Damage or residue after demolding | - Weak layer adhesion in 3D prints - Injection pressure exceeds material strength | - Increase wall thickness ≥3 mm - Use screw-locking instead of clamps |
| Rough Surface / Poor Demolding | - Print lines visible on product - Product sticks to mold, hard to demold - Stringing or tearing issues | - Rough FDM surfaces - Sticky materials (ABS, PC, PVC) | - Sand/polish mold, apply release agents - Use PETG or PA molds (less adhesive) - Release agents: silicone oil (oily) / Teflon spray (dry) - Use SLA/DLP resin printing for smooth surfaces |
| Poor Venting Design | - Air bubbles, burn marks - Incomplete filling, short shots - Air trapped in mold | - No vent channels in design - Gaps/geometry trap air - Insufficient holding pressure | - Add vent grooves (0.2 mm deep, 5 mm wide) at parting line - Use removable vent pins or open channels - Increase holding pressure & time - Shorten injection paths, avoid dead corners |
